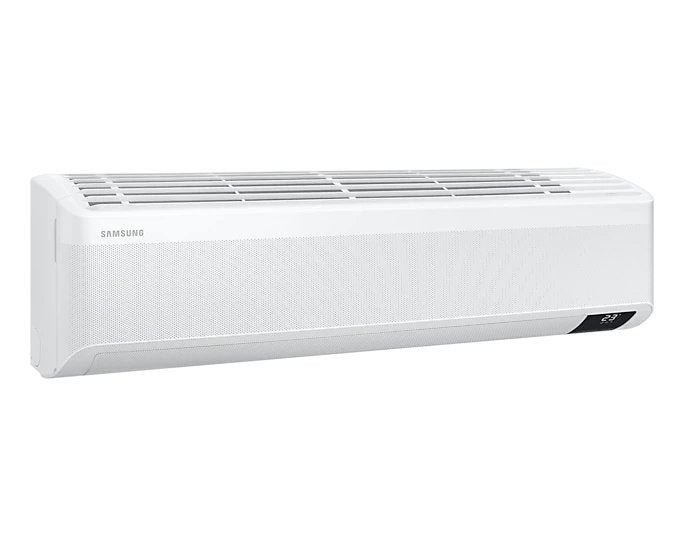

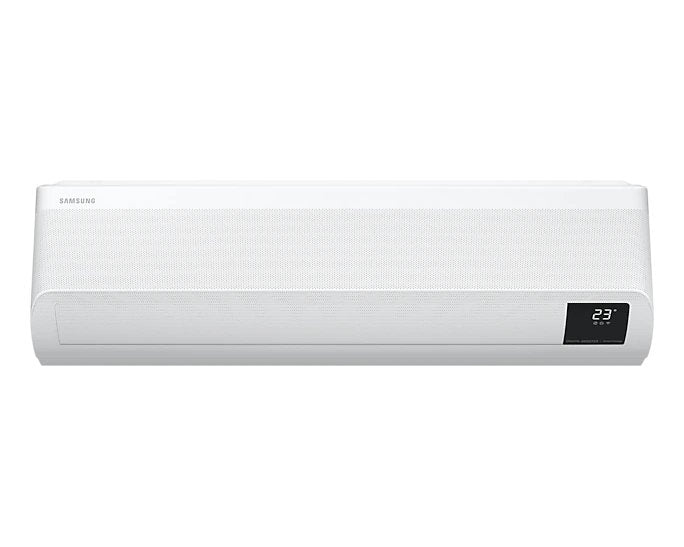

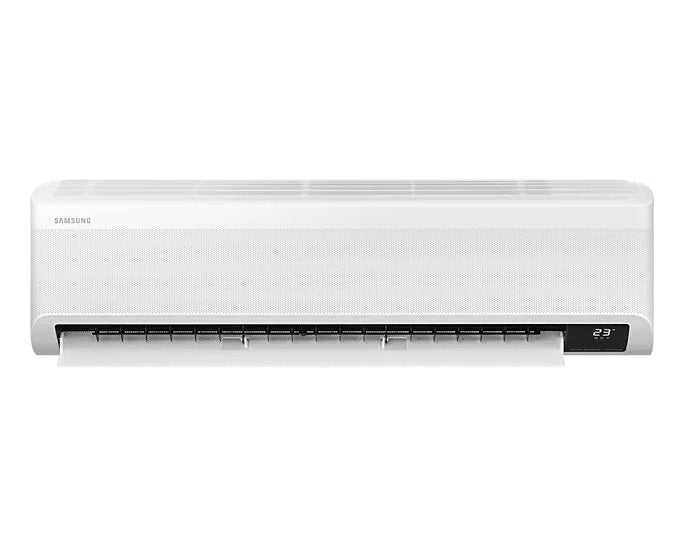

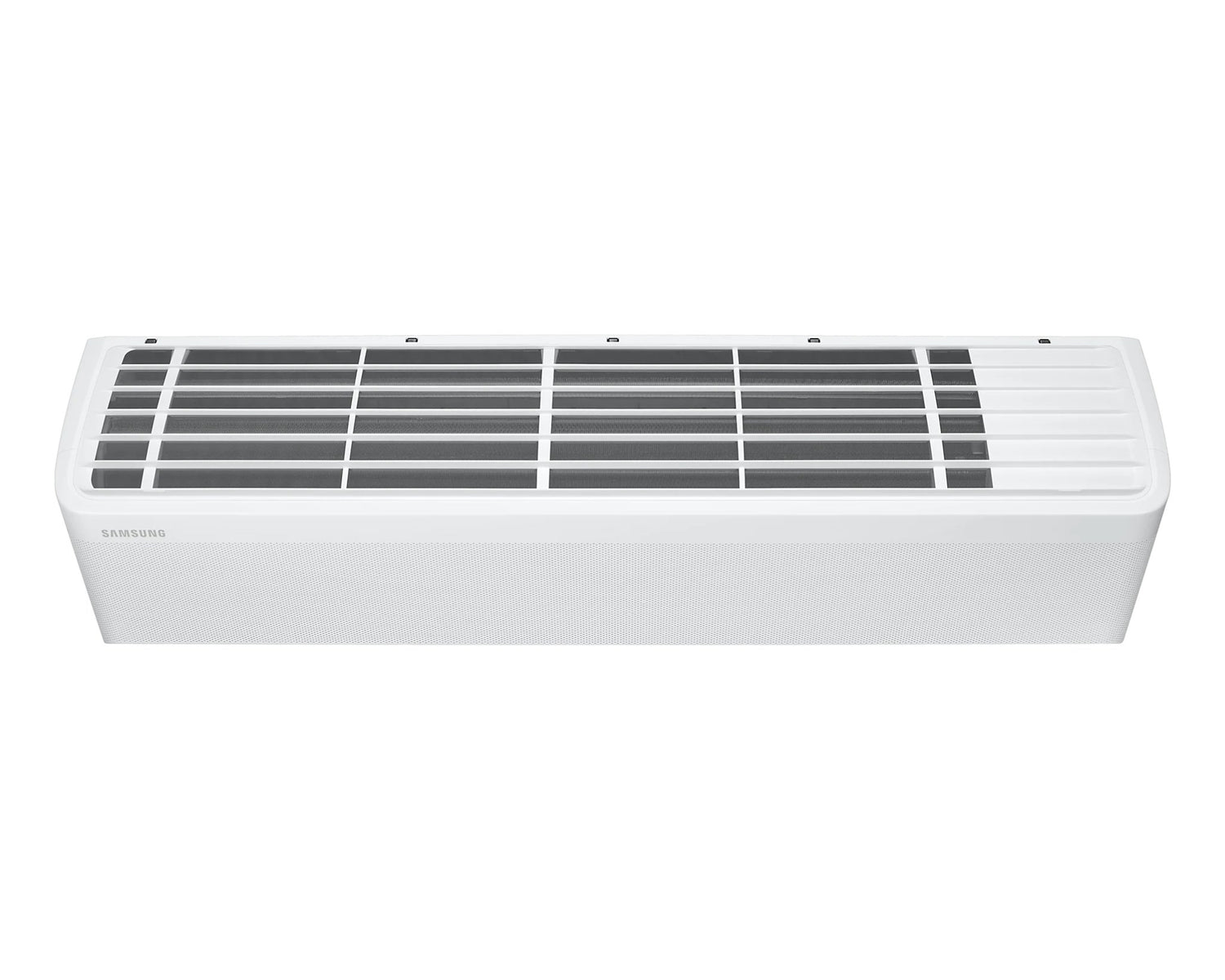

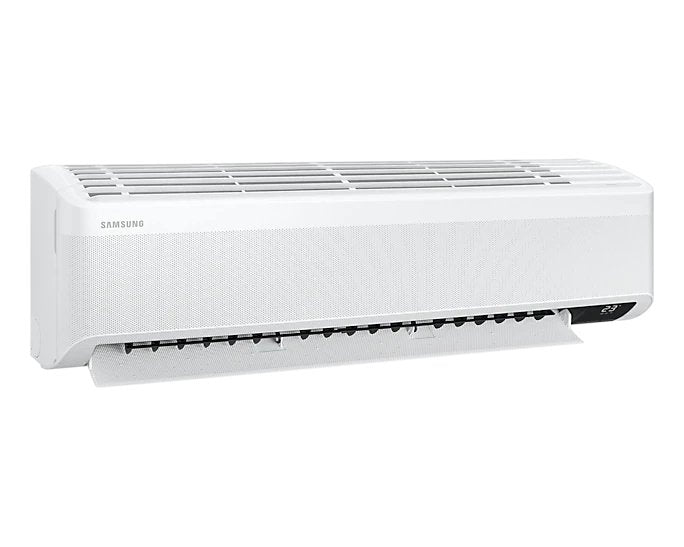

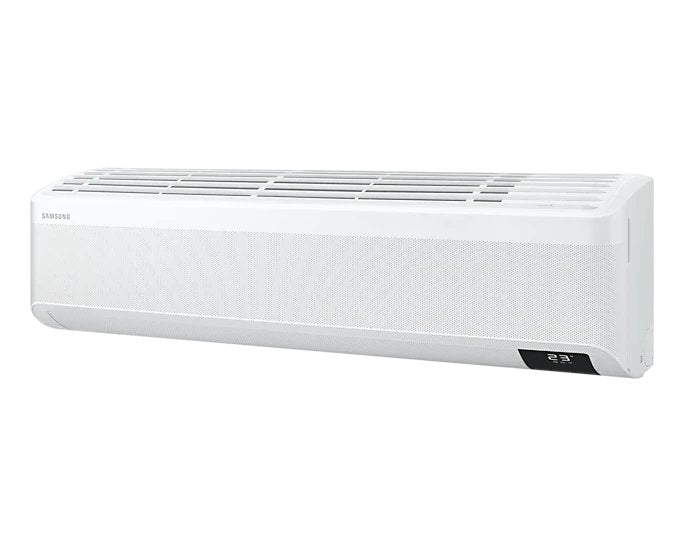

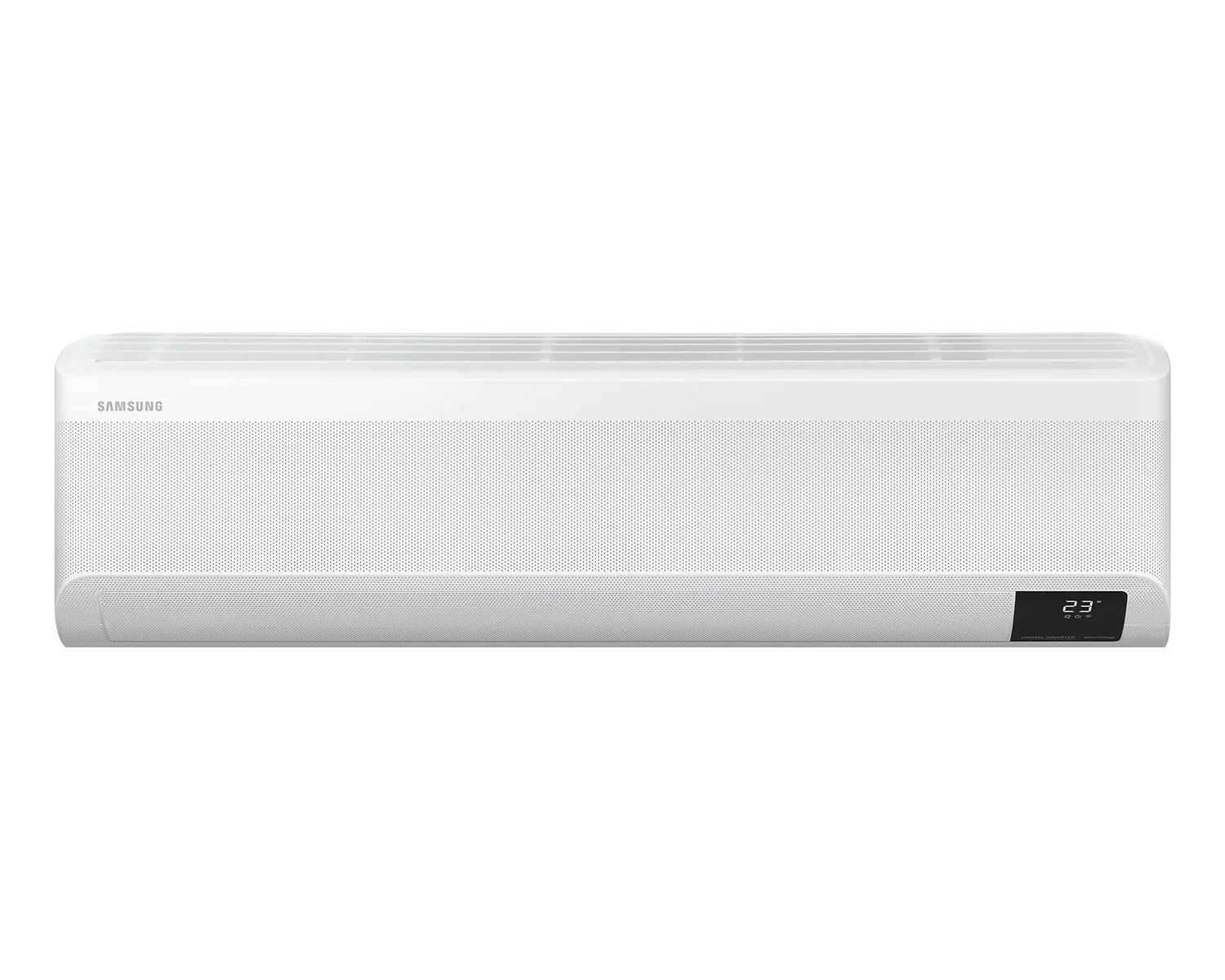

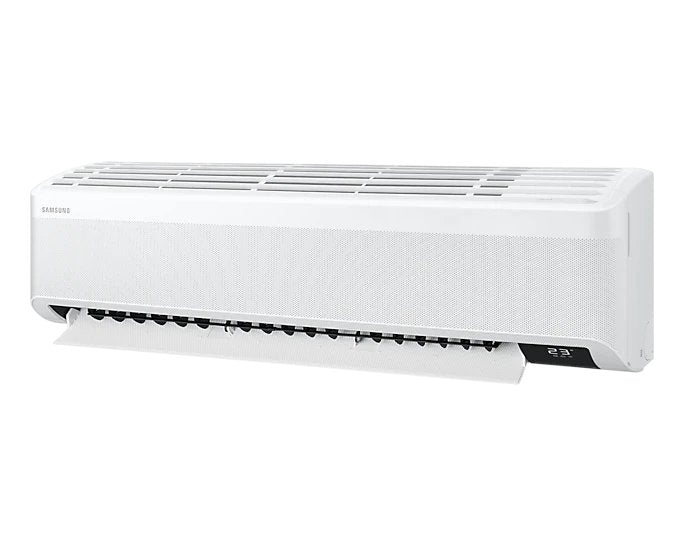

Samsung AR24TXEAAWKNSH 2.5 HP inverter heating and cooling WindFreeᵀᴹ Premium Plus "windless" wall-mounted air conditioner
Why choose Fever Electrics
100% HK Authorized
Official warranty
10-Day Exchange
T&Cs apply
Fast & Reliable Delivery
Across Hong Kong

Product website: WindFreeᵀᴹ Wall-mounted Air Conditioner AR24TXHAAWKNSH | Samsung Electronics Hong Kong (samsung.com)
Product Specifications
capacity
| Cooling energy (Cooling, Btu/hr) | 22179 Btu/hr |
| Heating energy (Heating, Btu/hr) | 25250 Btu/hr |
| Cooling energy (Cooling, Min - Max, Btu/hr) | 4,777 ~ 25,932 Btu/hr |
| Heating energy (Heating, Min - Max, Btu/hr) | 4,095 ~ 33,098 Btu/hr |
| Cooling energy (kW) | 6.50 kW |
| Heating energy (kW) | 7.40 kW |
| Cooling energy (Cooling, Min - Max, kW) | 1.4 ~ 7.6 kW |
| Heating energy (Heating, Min - Max, kW) | 1.2 ~ 9.7 kW |
Energy efficiency
| Cooling energy saving rate (Cooling, W/W) | 3.33 W/W |
| Heating power saving rate, COP | 3.15 W/W |
| Seasonal performance coefficient |
5.00 |
| Energy rating (cooling) | Ticks : 1 |
Noise Level
| Noise level (indoor, high/low, dB(A)) | 45 / 26 dBA |
| Noise level (outdoor, high, dB(A)) | 54 dBA |
Power data
| Power supply (Φ/V/Hz) | 1 / 220-240 / 50 |
| Refrigeration power consumption (cold) | 1950 W |
| Power consumption (temperature) | 2350 W |
| Refrigeration operating current (cold) | 8.8 A |
| Heating operating current | 10.5 A |
design
| Net size (Indoor, width x height x depth, mm*mm*mm) | 1055*299*215 mm |
| Net size (Outdoor, WxHxD, mm*mm*mm) | 880*638*310 mm |
| Net weight (Indoor, kg) | 12.6 kg |
| Net weight (Outdoor, kg) | 43.4 kg |
| Loading capacity (20/40/40Hft excluding hose) | 65 / 138 / 154 |
| country of origin | Thailand |
Technical data
| Throat length (Max, m) | 30 m |
| Throat height (Max, m) | 15 m |
| Pipe diameter liquid (ø, mm) | 6.35 |
| Pipe diameter gas (ø, mm) | 15.88 |
| Dehumidification (l/hr) | 2.5 l/hr |
| Indoor air circulation (Cooling, ㎥/min) | 17.6㎥/min |
| Refrigerant Type | R32 |
| Refrigerant (Charging, kg) | 1.30 kg |
| Cooling environment temperature (Cooling, ℃) | -10~46 ℃ |
| Low Ambient (Heating, ℃) | -15~24 ℃ |
| Outdoor System (Anti-Corrosion Fin) | have |
airflow
| Airflow direction operation (Up/Down) | Auto |
| Airflow direction operation (Left/Right) | Auto |
| Airflow mode operation (Cool/Fan) | 5/4 |
Air purification
| Triple protection filter | have |
| Antibacterial filter | have |
| Self Cleaning | have |
Convenient functions
| SmartThings | have |
| AI | have |
| Filter cleaning reminder | have |
| Outdoor temperature display | have |
| Display on/off | have |
| Prompt sound on/off | have |
| 24-hour timer | have |
| Automatic cooling and heating switching | have |
| Automatic Restart | have |
Operation Mode
| Auto Mode | have |
| Fast cooling mode | have |
| Sleep mode | have |
| Eco Mode | have |
| Dehumidification mode | have |
| Air supply mode | have |
| Silent Mode | have |
Smart functions
|
Smart functions
|
Built-in WiFi | have |
|
app
|
Support SmartThings app | have |
Product Care
| Maintenance period | 1 year warranty on the whole machine, 3 years warranty on compressor parts |
| Hong Kong General Agent | Samsung |
| Customer Service Hotline | (852) 3698 4698 |
| Customer Inquiry Email | - |
| website | https://www.samsung.com |
| address | - |
| Service Hours |
TV, audio, video and home appliances: Monday to Friday | 9:00am to 8:00pm
Saturday, Sunday and Public Holidays | 9:00am to 6:00pm |
-
產品型號AR24TXEAAWKNSH (室內機) / AR24TXEAAWKXSH (室外機)
-
冷氣機類型2.5匹 / 變頻冷暖掛牆分體式
-
製冷能力22,179 BTU/hr (6.50 kW)
-
製暖能力25,250 BTU/hr (7.40 kW)
-
能源效益標籤1級能源效益 (製冷及供暖)
-
雪種型號R32環保雪種
-
產地泰國
-
智能網絡內置Wi-Fi (支援SmartThings App)
-
特色功能WindFree無風感製冷、AI智能冷卻
-
空氣過濾Tri-Care 三重空氣淨化濾網 (抗PM2.5及抗菌)
-
噪音水平 (室內機)45 / 26 dB(A)
-
噪音水平 (室外機)54 dB(A)
-
室內機尺寸 (高x闊x深)299 x 1055 x 215 毫米 (mm)
-
室內機淨重量12.6 公斤 (kg)
-
室外機尺寸 (高x闊x深)638 x 880 x 310 毫米 (mm)
-
室外機淨重量43.4 公斤 (kg)
-
喉管尺寸依據原廠官方安裝指引
-
保養期1年全機,10年壓縮機保養
